Proximity Switch Manufacturer in India Since 1985

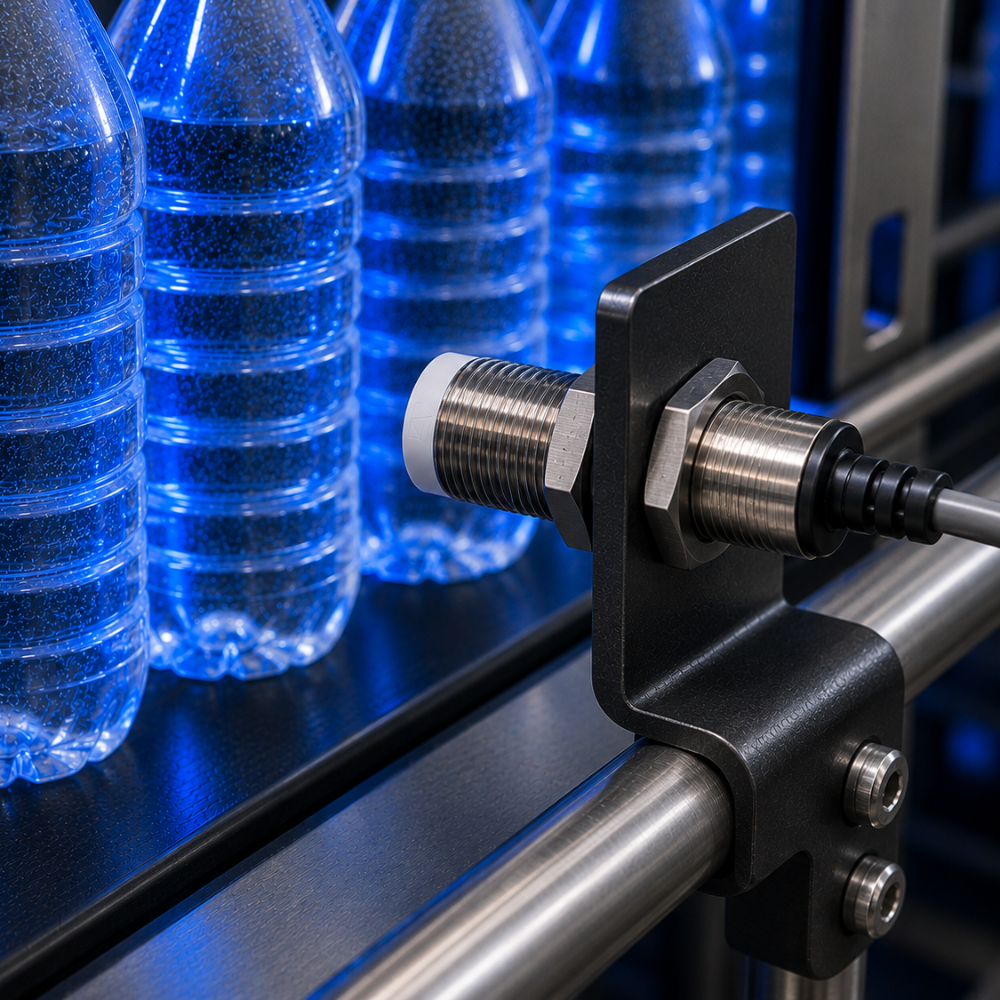

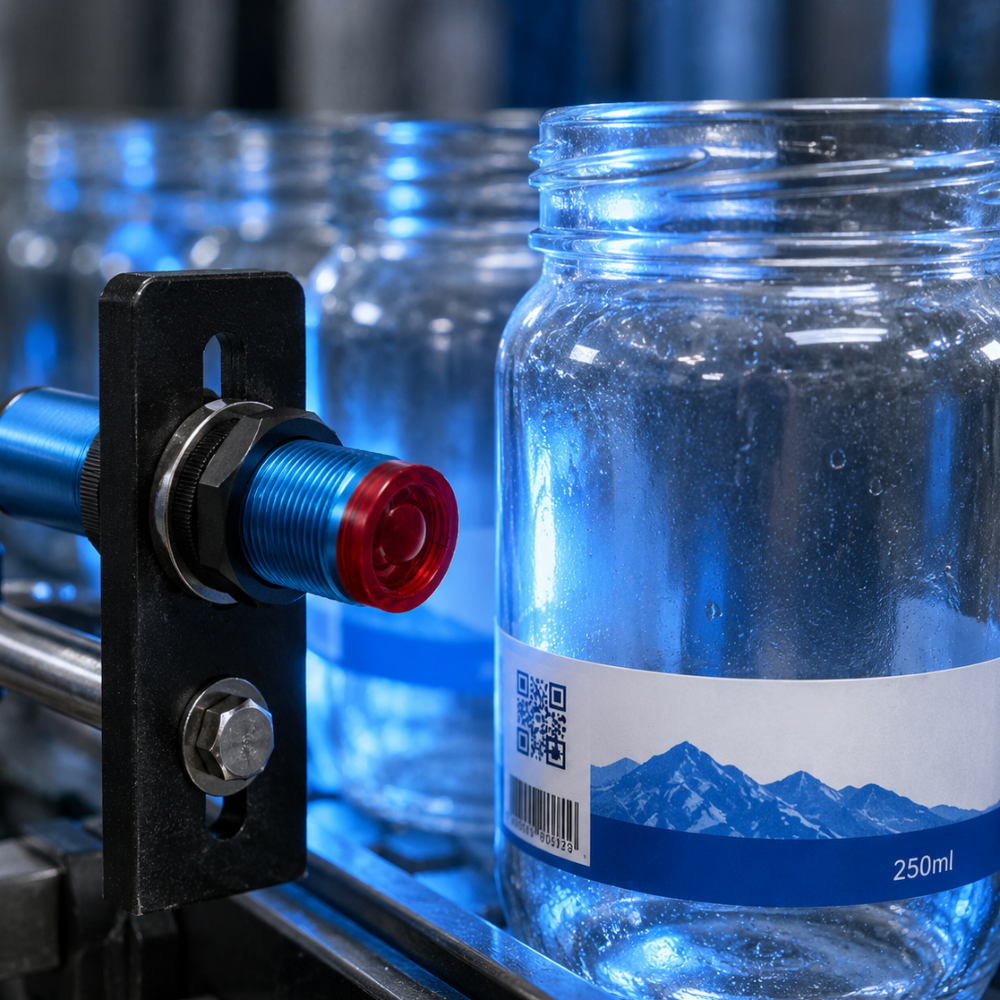

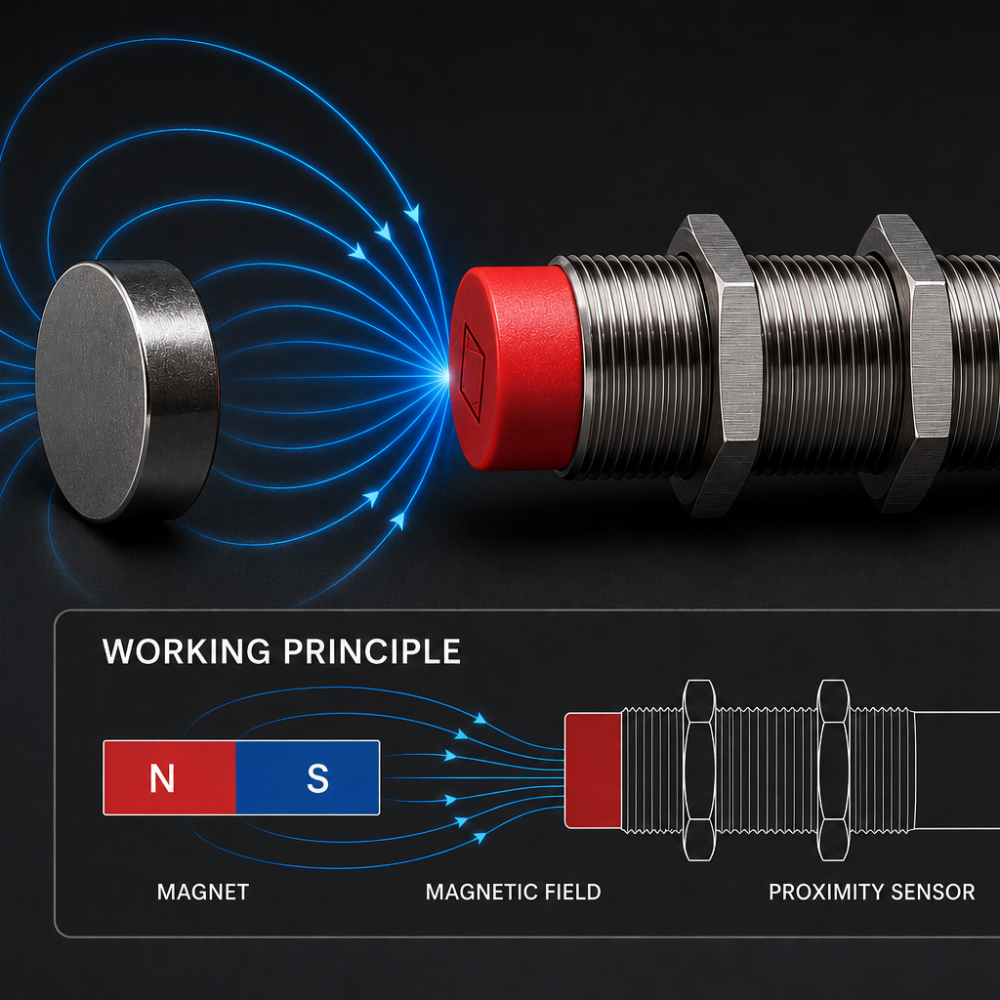

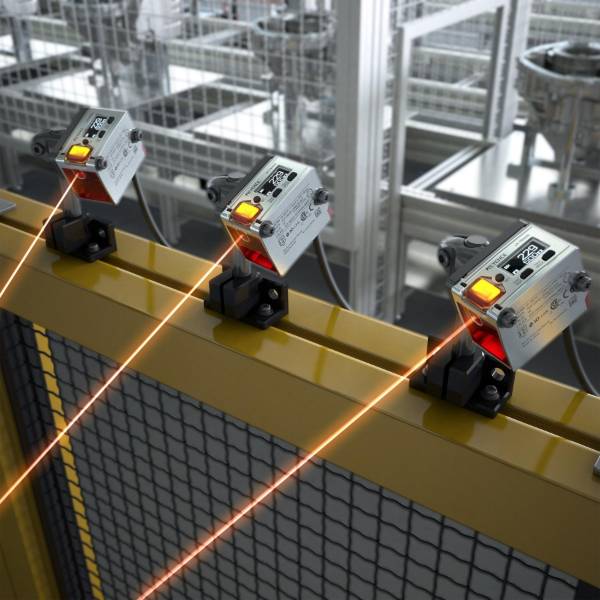

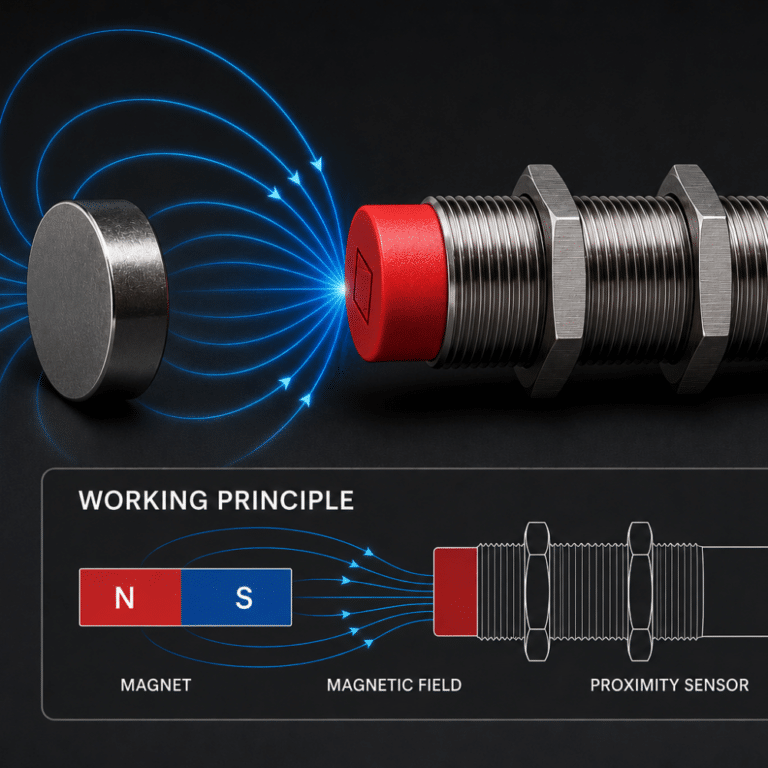

Inductive, capacitive, photoelectric, magnetic and NAMUR sensors, designed and built at our own plant in Vikhroli, Mumbai, to IEC 60947-5-2.
Our Clients
Our sensors are trusted by top companies across India, reaffirming our reputation for quality, performance, and value.
Sensors from this plant run in Bosch, Siemens, Honeywell, Bharat Electronics, Ashok Leyland, Exide and MRF lines across India.
Why buy from Accent
Our own plant, not an import label
Proximity switches have been designed and built at our facility in Vikhroli, Mumbai, since 1985.
Kastl Electronic collaboration
A technical collaboration with Kastl Electronic GmbH, Germany, brought thick-film hybrid circuitry to Indian sensor manufacture for the first time.
Surface-mount before anyone else here
The first Indian company to build sensors on a surface-mount line, for smaller housings and repeatable quality.
Every unit, not a sample
Each switch is burn-in tested, with 100% in-process and post-production inspection and over 90% of joints machine-soldered.
Rated the way the standard defines it

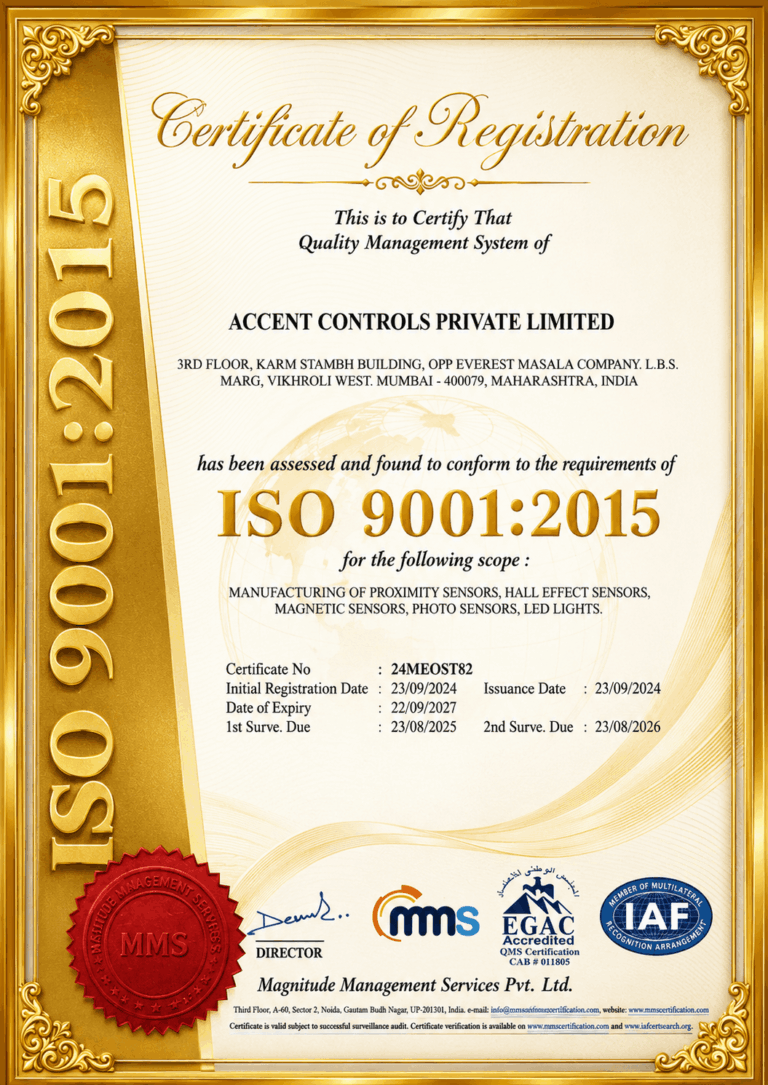

Sn, Sa, hysteresis and repeat accuracy are specified to IEC 60947-5-2. ISO certified. See how we test.
What we make
Every switch below is designed and manufactured at our Mumbai plant to IEC 60947-5-2, and stocked for short domestic lead times. We supply aerospace, industrial automation, oil and gas, pharmaceutical, textile, cement and packaging plants across India.

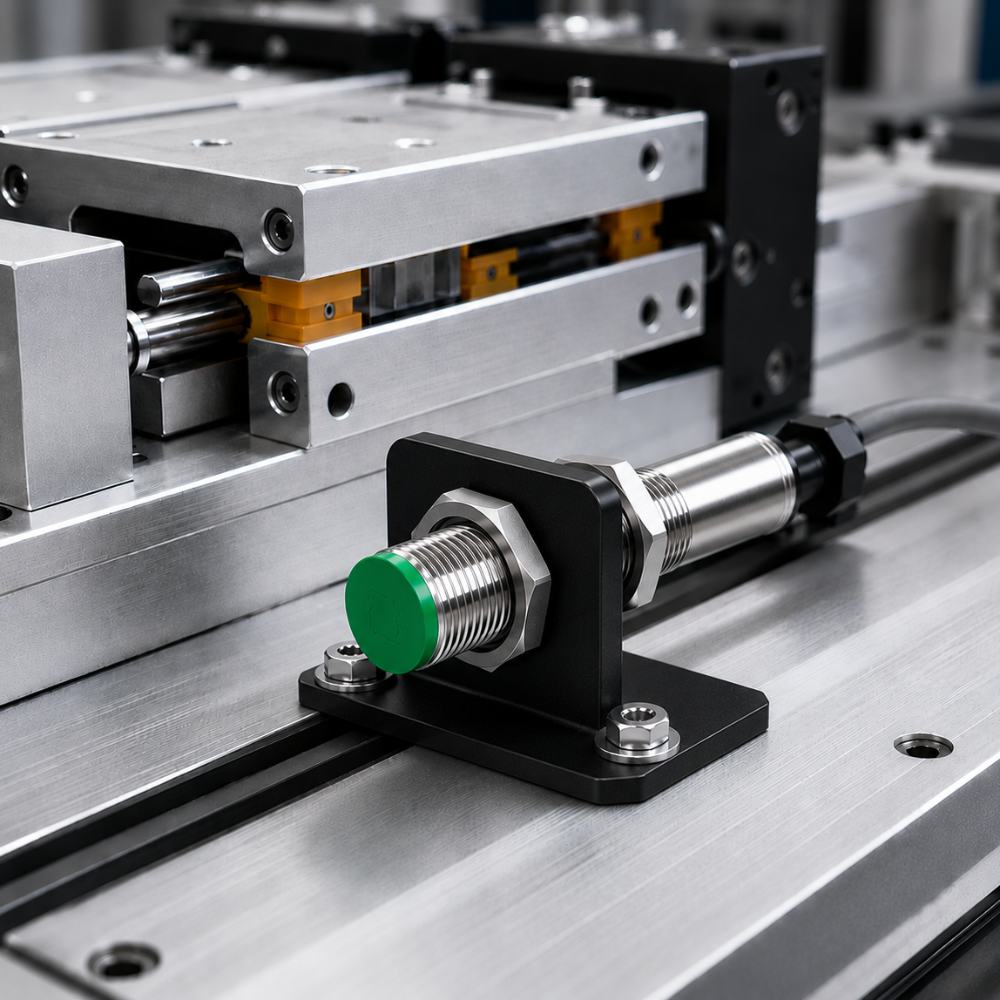

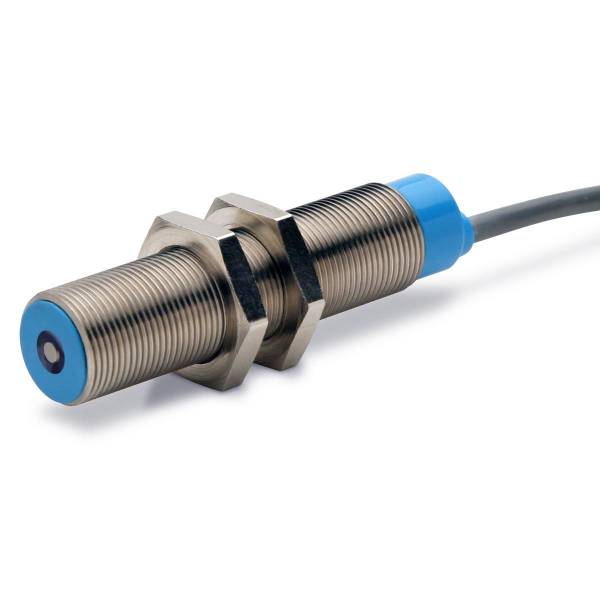

Inductive range at a glance
DC 3-wire inductive proximity switches (D30C series). 10 to 30 V DC, reverse-polarity protected, IP67, −10 to +70 °C. Hysteresis ≤15% of Sn, repeat accuracy ≤10%, temperature drift ≤10% of Sn.
| Housing | Mounting | Sn rated (mm) | Sa assured (mm) | Switching frequency | Max load | Voltage drop |
|---|---|---|---|---|---|---|
| M6.5 | flush / non-flush | 1 / 2 | 0.8 / 1.6 | 5000 Hz | 200 mA | ≤2 V |
| M8 | flush / non-flush | 1 / 2 | 0.8 / 1.6 | 5000 Hz | 200 mA | ≤2 V |
| M12 | flush / non-flush | 2 / 4 | 1.6 / 3.2 | 5000 Hz | 200 mA | ≤3.5 V |
| M18 | flush / non-flush | 5 / 8 | 4.0 / 6.4 | 2000 Hz | 300 mA | ≤3.5 V |
| M30 | flush / non-flush | 10 / 15 | 8.1 / 12.1 | 1000 Hz | 300 mA | ≤3.5 V |
| M36 | non-flush | 20 | 16.2 | 500 Hz | 300 mA | ≤3.5 V |
| M50 | non-flush | 30 | 24.3 | 100 Hz | 300 mA | ≤3.5 V |
| 17×17 block | flush / non-flush | 5 / 8 | — | — | — | — |
| 40×40 block | fixed or rotatable head | 15 / 20 | — | — | — | — |
Sn and Sa as defined in IEC 60947-5-2: Sn is the rated figure, Sa is the distance at which operation is assured for any unit under any permitted condition. Also available as 2-wire DC, 2-wire AC (40 to 250 V AC), NAMUR and analog (0–5 V, 0–10 V, 4–20 mA, 0–20 mA). Nickel-plated brass housing, stainless steel on request. Browse inductive switches or download the full catalogue.
Global Partnerships

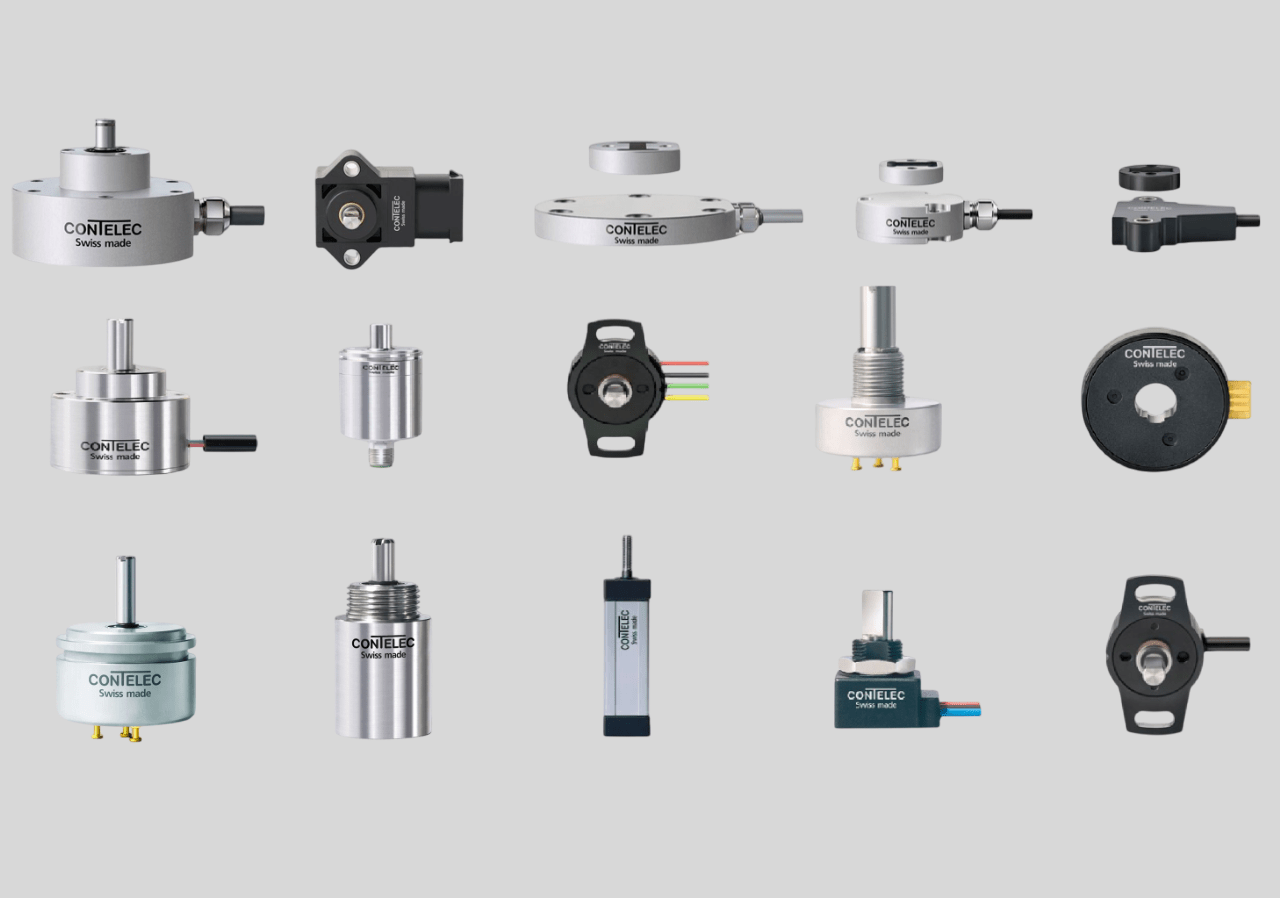

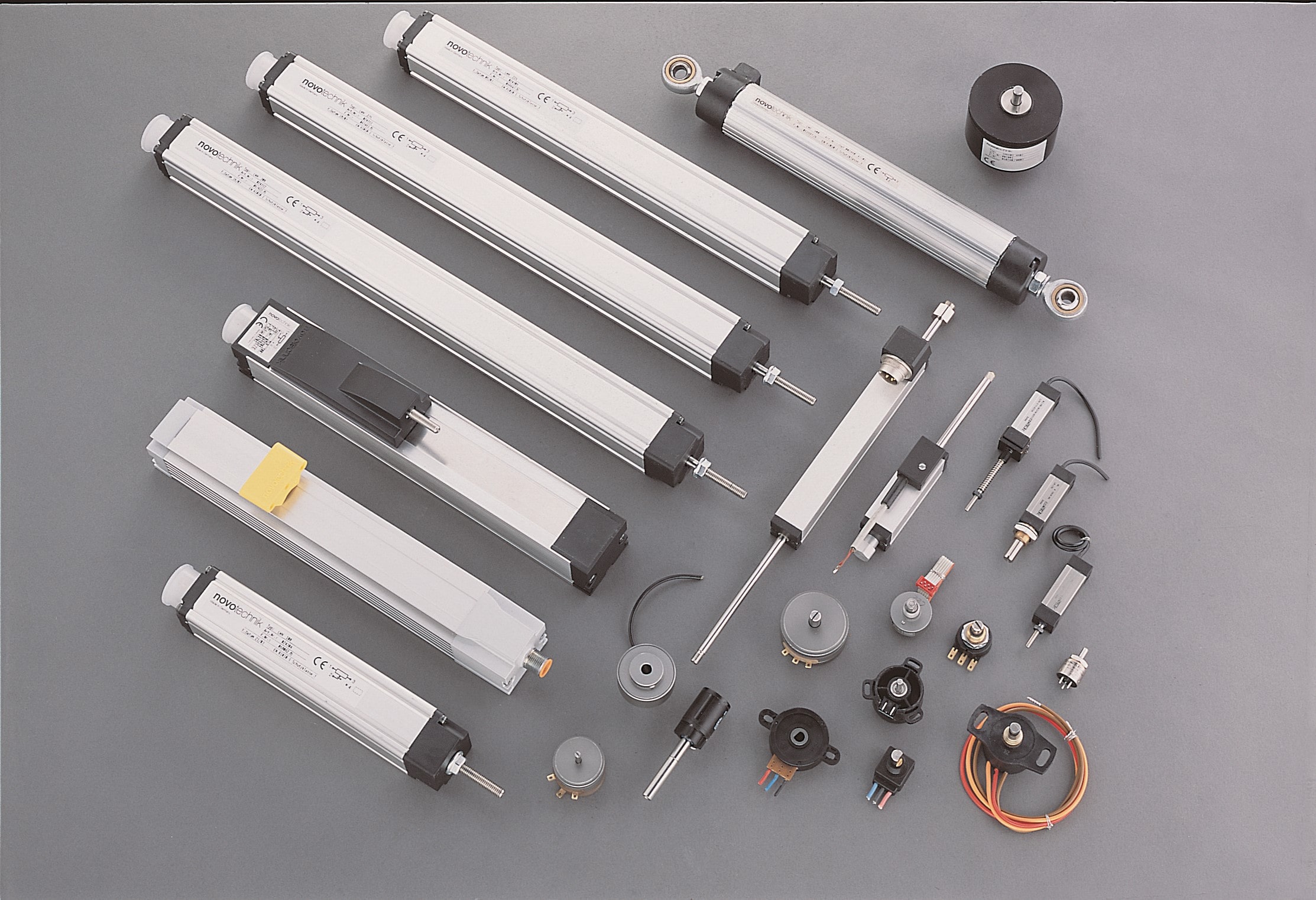

Accent is the sole authorised distributor in India and SAARC for Novotechnik (Germany) linear and rotary position transducers and Contelec (Switzerland) rotary sensors, with local stock and application support from Mumbai.
Our Accreditations
Accreditations and Affiliations
We continuously invest in certifications and collaborate with leading industry organizations to ensure our products meet global quality requirements while delivering consistent performance across diverse industries.
Replacing an imported sensor?
Send us the part number you use today. We will reply with the Accent equivalent, its rated distance to IEC 60947-5-2, and a price, built and stocked in Mumbai rather than shipped in.
We regularly cross-reference Omron, Pepperl+Fuchs, Autonics, Telemecanique / OsiSense, ifm, Turck and Balluff part numbers.
Engineering notes
Written by the people who build the sensors, for the people who specify, wire and replace them.
- PNP vs NPN proximity sensorsWhich output your PLC input card needs, and how to wire each.
- Flush vs non-flush mountingWhen a metal-free zone is mandatory and what happens if you skip it.
- Sensing distance by target metalReduction factors for steel, chrome-nickel, brass, aluminium and copper.
- NAMUR sensors explainedThe 8.2 V intrinsically safe interface and the control unit it needs.
- 2-wire, 3-wire and 4-wire sensorsLeakage current, voltage drop and what your PLC input will tolerate.
- Proximity sensor troubleshootingTwelve common faults, from chattering outputs to sensors that never switch.

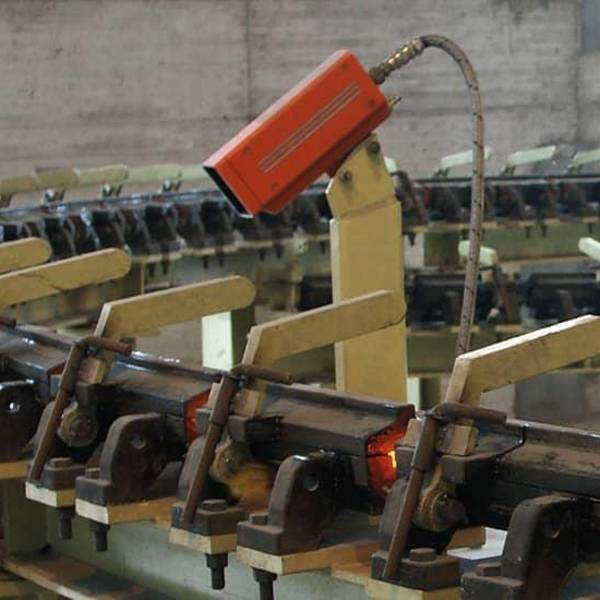

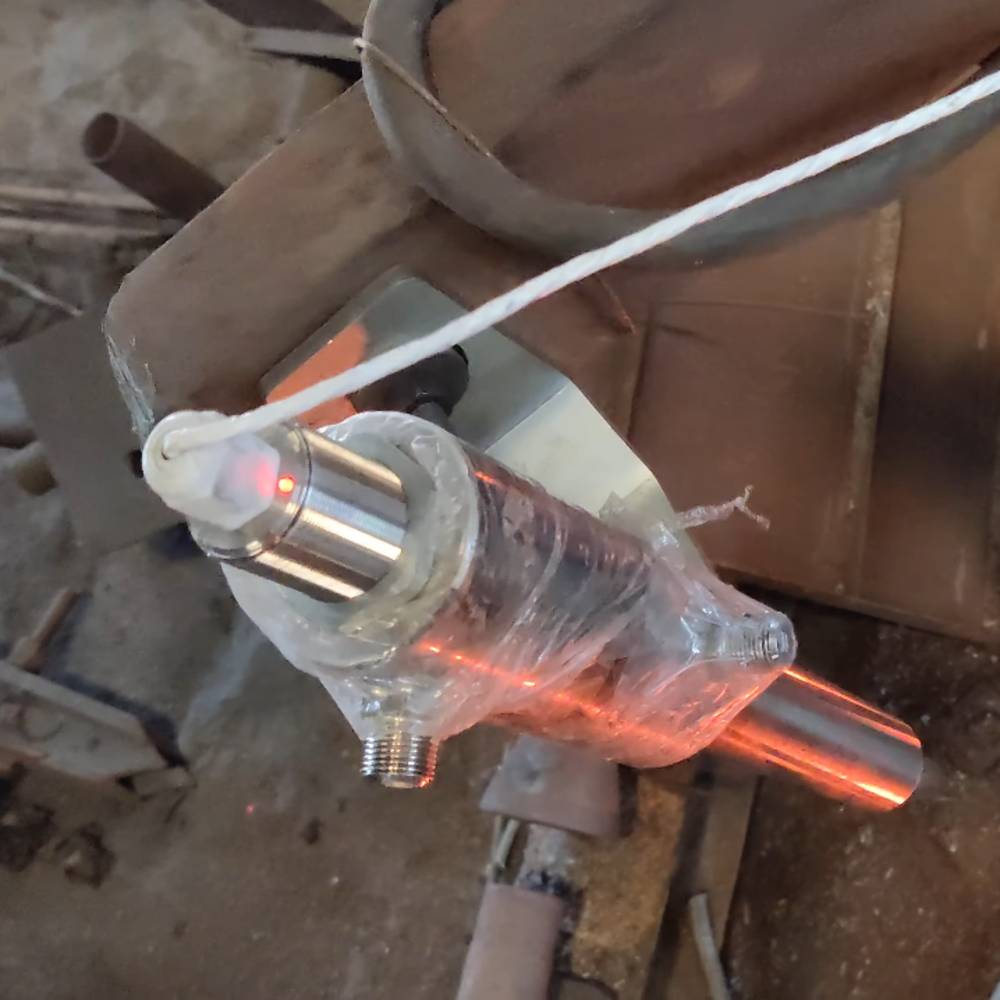

- Hot metal detectors in rolling millsWhere they mount, what they see, and how cooling jackets extend their life.
- IP67, IP68 and IP69KWhat each rating is actually tested against, and which one a washdown line needs.
- Selection, wiring and troubleshooting FAQAnswers to the questions our engineers get asked most.
All articles on the Accent blog. Datasheets and certificates in the downloads section.
